Integrated Tx/Rx antennas for BeiDou RDSS short message communication and Tiantong handheld satellite comms. L-band uplink, S-band downlink, RHCP/LHCP, up to 10 W transmit, IP67.
Application Overview
Why Satellite Messaging Antennas Are Built Differently
BDS short-message service (RDSS) is unique to BeiDou: a bidirectional satellite messaging capability that covers regions where cellular infrastructure is absent or unreliable — open ocean, remote border areas, high-altitude terrain, and forward operating environments. Antennas that serve RDSS must handle simultaneous L-band uplink transmission (around 1615 MHz) and S-band downlink reception (around 2491 MHz) without the two modes interfering — a design constraint that goes well beyond standard navigation antennas.
The GNSource BDS messaging line pairs dedicated helicals (TDXL-HB410 for S-band receive, TDXL-HB420 for L-band transmit with 10 W capability) with integrated combined antennas (BLS3001, BLS4001/4002, CZBLS4003) that collapse navigation + messaging into a single enclosure and single coax feed — ideal for maritime, vehicular, and aviation installations where cabling complexity is the constraint. The TDXL-SH166 handheld spiral integrates RHCP navigation and short-message reception with LHCP messaging uplink in a 100 g package.
The Tiantong TDXL-S1505 is a separate product line — S-band mobile satellite voice/data, not RDSS. Four-arm spiral, LHCP, ≤2 dB axial ratio, and 20 g weight make it suitable for handheld terminals operating over the Tiantong constellation. Note that RDSS and Tiantong services each require separate network authorization from the Chinese operator; GNSource supplies the antenna hardware only.
Key Specifications to Consider
Tx Power
Standalone Tx helicals support 10 W; integrated variants ship with ~5 W PA.
Tx/Rx Isolation
Combined antennas need ≥15 dB L↔S isolation to avoid self-jamming.
Axial Ratio
≤3 dB keeps cross-polar loss manageable on both links.
Connector & Feedline
TNC-KF waterproof for outdoor vehicle and marine installs.
Multi-Band Support
Single antenna handling B1I/B1C/B3I/L/S eliminates multiple antennas.
Product Catalog
BDS Short Message Models
9 models in this category. Click Request Quote on any row to pre-fill the inquiry form.
| Model | Type | Frequencies | Key Specs | Form Factor | Action | |
|---|---|---|---|---|---|---|
 | TDXL-SH166 | Spiral Rx/Tx Handheld | BDS B1I/B1C/B3I/L/S + GPS L1 | Active Rx + passive Tx · Dual-core connector · 30±3dB LNA | Ø23mm × 166mm · 100g · JSYZH | |
| TDXL-HB410 | Short Message Rx | BDS S (2491.75 ±4.08 MHz) | Passive · RHCP · Axial ratio ≤3dB · IP67 | Helical · Ø18.6 × 50.5mm · 16g · SMA-J | ||
| TDXL-HB420 | Short Message Tx | BDS L (1615.68 ±4.08 MHz) | Passive · LHCP · 10W power · Axial ratio ≤3dB · IP67 | Helical · Ø18.6 × 50.5mm · 16g · SMA-J | ||

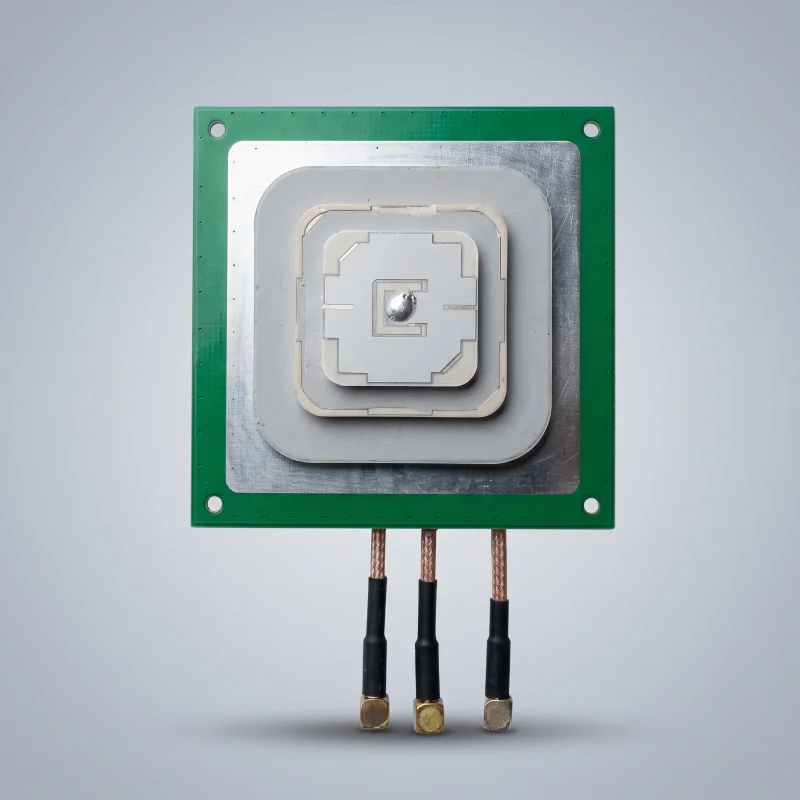

 | TDXL-BLS3001 | Integrated Short Message | BDS B1/L/S | Rx+Tx integrated microstrip · Offset feed · Isolation ≤-15dB | Ø68 × 15mm · 100g · MCX (customizable) | |
 | TDXL-BLS4001 | Passive Multi-Band Combined | BDS B1I/B2b/B3I/L/S | All-band passive · Microstrip laminated · Phase center ±5mm | Ø132mm disc · 16g · TNC | |

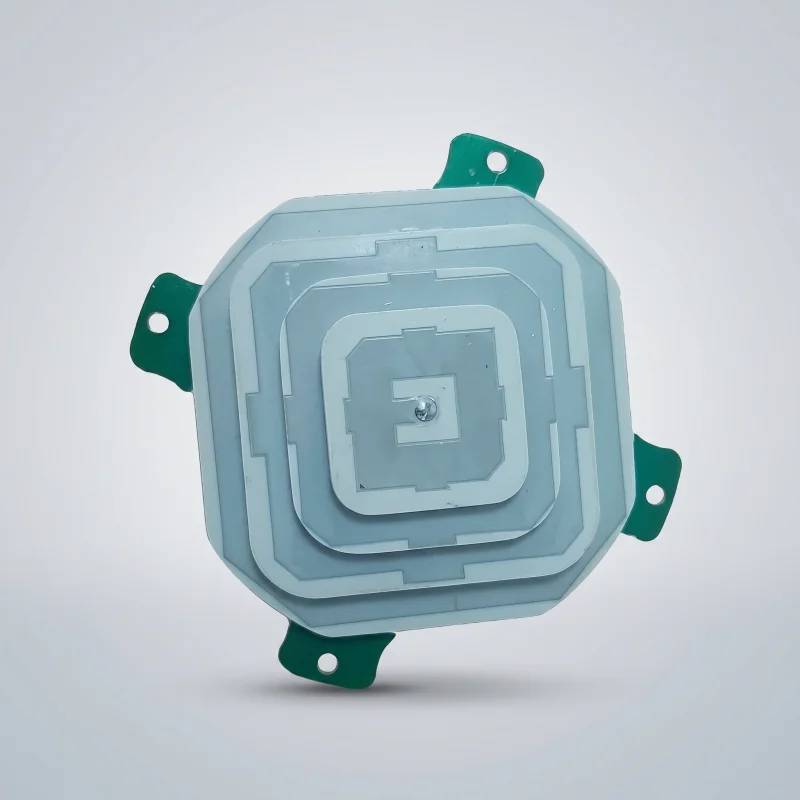

 | TDXL-BLS4002 | Combined Short Message | BDS B3I/B1I/L/S | High gain · Offset feed · Customizable SMP-K connector | Ø84 × 21mm · 120g · SMP-K | |
 | TDXL-CZBLS4003 | All-in-One Surveying | BDS B3/B2/B1/L/S | LNA + 5W PA integrated · TNC-KF waterproof · GJB-compliant | Ø130 × 67mm · 360g · TNC-KF | |
 | TDXL-S1505 | Tiantong Handheld Satellite | Tx 1980–2010 MHz / Rx 2170–2200 MHz (S-band Tiantong) | LHCP · Four-arm spiral · Gain ≥2.5 dBi (axial) · Axial ratio ≤2.0 dB · VSWR ≤1.5 | Ø15 × 100mm · 20g · SMA-J | |

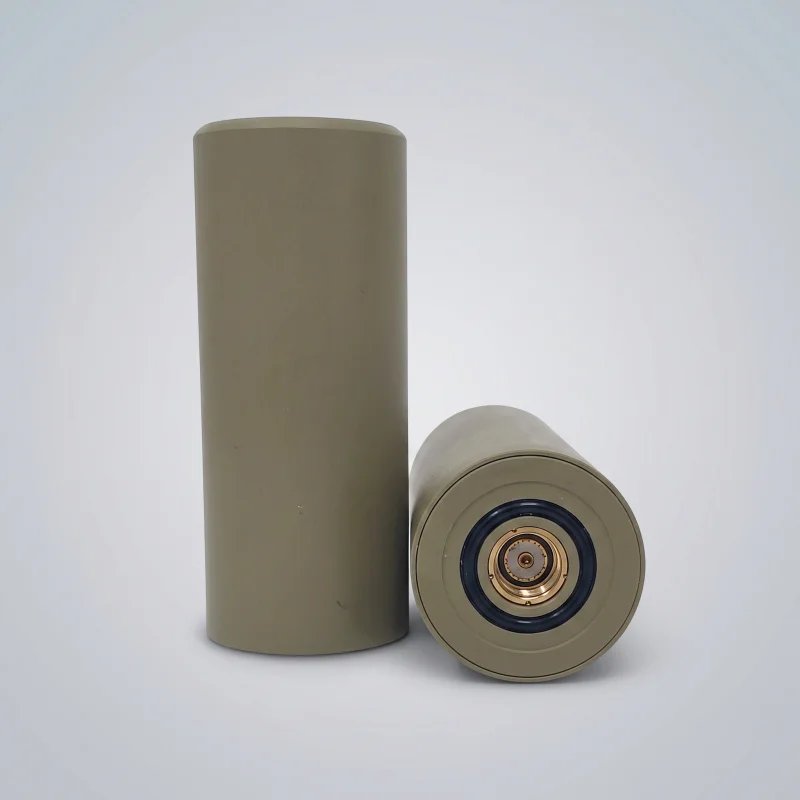

 | TDXL-BSWA23MH | BDS + WiFi Combined | BDS B1I/B1C/B3I · WiFi 2.4 GHz | 8-arm coupling + 4-point feed · Two-stage filtering · RHCP (BDS) + linear (WiFi) · Axial ratio ≤2dB | Combined helical · Handheld integration |
TDXL-SH166
Spiral Rx/Tx Handheld
- Frequencies
- BDS B1I/B1C/B3I/L/S + GPS L1
- Key Specs
- Active Rx + passive Tx · Dual-core connector · 30±3dB LNA
- Form Factor
- Ø23mm × 166mm · 100g · JSYZH
TDXL-HB410
Short Message Rx
- Frequencies
- BDS S (2491.75 ±4.08 MHz)
- Key Specs
- Passive · RHCP · Axial ratio ≤3dB · IP67
- Form Factor
- Helical · Ø18.6 × 50.5mm · 16g · SMA-J
TDXL-HB420
Short Message Tx
- Frequencies
- BDS L (1615.68 ±4.08 MHz)
- Key Specs
- Passive · LHCP · 10W power · Axial ratio ≤3dB · IP67
- Form Factor
- Helical · Ø18.6 × 50.5mm · 16g · SMA-J
TDXL-BLS3001
Integrated Short Message
- Frequencies
- BDS B1/L/S
- Key Specs
- Rx+Tx integrated microstrip · Offset feed · Isolation ≤-15dB
- Form Factor
- Ø68 × 15mm · 100g · MCX (customizable)
TDXL-BLS4001
Passive Multi-Band Combined
- Frequencies
- BDS B1I/B2b/B3I/L/S
- Key Specs
- All-band passive · Microstrip laminated · Phase center ±5mm
- Form Factor
- Ø132mm disc · 16g · TNC
TDXL-BLS4002
Combined Short Message
- Frequencies
- BDS B3I/B1I/L/S
- Key Specs
- High gain · Offset feed · Customizable SMP-K connector
- Form Factor
- Ø84 × 21mm · 120g · SMP-K
TDXL-CZBLS4003
All-in-One Surveying
- Frequencies
- BDS B3/B2/B1/L/S
- Key Specs
- LNA + 5W PA integrated · TNC-KF waterproof · GJB-compliant
- Form Factor
- Ø130 × 67mm · 360g · TNC-KF
TDXL-S1505
Tiantong Handheld Satellite
- Frequencies
- Tx 1980–2010 MHz / Rx 2170–2200 MHz (S-band Tiantong)
- Key Specs
- LHCP · Four-arm spiral · Gain ≥2.5 dBi (axial) · Axial ratio ≤2.0 dB · VSWR ≤1.5
- Form Factor
- Ø15 × 100mm · 20g · SMA-J
TDXL-BSWA23MH
BDS + WiFi Combined
- Frequencies
- BDS B1I/B1C/B3I · WiFi 2.4 GHz
- Key Specs
- 8-arm coupling + 4-point feed · Two-stage filtering · RHCP (BDS) + linear (WiFi) · Axial ratio ≤2dB
- Form Factor
- Combined helical · Handheld integration
Flagship All-in-One
TDXL-CZBLS4003 — Complete BDS Terminal with Integrated LNA and PA
The TDXL-CZBLS4003 is a complete BDS short message and navigation terminal in a single enclosure — receiving B1/B2b/B3 navigation signals and S-band downlink messages while transmitting L-band uplink at up to 36 dBm (≈4 W) saturated output. The symmetric offset-feed antenna design stabilizes phase center and minimizes installation error, while the integrated pre-cavity filter enhances interference rejection in crowded RF environments. Smart power management disables the transmit amplifier when not in use, reducing power draw. Single-cable output combines RF signal transmission and DC power through one TNC-KF waterproof connector, simplifying vehicle and vessel installation. Suitable for marine, vehicular, and shipborne platforms requiring long-term outdoor deployment.
- Operating bands
- BDS B3I · B2b · B1I · L (Tx) · S (Rx)
- Polarization
- RHCP (Rx) / LHCP (L-band Tx)
- Output impedance
- 50 Ω
- Gain at zenith
- B3I ≥3.5 dBi · B2b ≥5 dBi · B1I ≥3.5 dBi · L ≥3 dBi · S ≥3 dBi
- Elevation gain (20°)
- ≥-3 dBi across all bands
- Phase center
- ±2 mm
- LNA gain
- 38 ± 2 dB
- LNA noise figure
- ≤2.0 dB
- PA input power
- -35 dBm trigger / 0–5 dBm saturation
- PA output (P-1dB)
- 36 dBm (≈4W) saturated
- PA in-band gain
- 36 ± 1 dB
- Efficiency
- ≥35%
- Operating voltage
- +5V to +7V
- Operating current
- ≤2.5 A (Tx active)
- Connector
- TNC-KF (waterproof)
- Mounting
- Center pole screw mount
- Dimensions
- Ø130 mm × 67 mm
- Weight
- ≤360 g
- Colour
- White radome / black base
- Operating temperature
- -40°C to +70°C
- Storage temperature
- -55°C to +85°C
Get a Quote
Request a quote for BDS Short Message Communication antennas
Tell us about your project — we'll respond within 24 hours with pricing, lead time, and technical recommendations tailored to your application.
FAQ
BDS Short Message FAQs
Answers to common questions about BDS RDSS service, Tiantong, Tx power, and combining navigation with short-message in a single antenna.
What's the difference between BDS short-message (RDSS) and Tiantong mobile satcom?
BDS RDSS (Radio Determination Satellite Service) operates on L-band transmit (1615 MHz) and S-band receive (2491 MHz) for two-way short messages via BeiDou satellites — a China-controlled service with unique coverage. Tiantong is a separate Chinese mobile-satellite system at 1980–2010 / 2170–2200 MHz for voice and broader data. TDXL-S1505 supports Tiantong; TDXL-SH166, HB410/420, and the BLS / CZBLS series target BDS RDSS.
What transmit power do BDS L-band antennas support?
TDXL-HB420 handles 10 W LHCP transmit for BDS L-band RDSS uplink. Integrated CZBLS vehicle-mounted variants — CZBLS4001, CZBLS4003, CZBLS4006 — include approximately 5 W power amplifier in a single enclosure with TNC-KF waterproof interface, simplifying platform integration.
Is BDS short-message service available outside China?
BeiDou short message is a China-operated satellite service; regional availability depends on satellite coverage and local regulatory clearance. BDS-3 extends global short-message coverage with service-level limitations — consult the BeiDou service operator (China Satellite Navigation Office) for availability, terminal authorization, and pricing in your target region. GNSource supplies the antenna hardware; service provisioning is separate.
Can one antenna combine BDS navigation and short-message in a single cable?
Yes. TDXL-SH166, TDXL-CZBLS4003, and the BLS4001 / BLS4002 series integrate BDS B1I / B1C / B3I navigation reception with L-band transmit and S-band receive for short messages — a single antenna, single cable, and single connector to the terminal. This simplifies cabling on maritime, vehicular, and handheld platforms.
