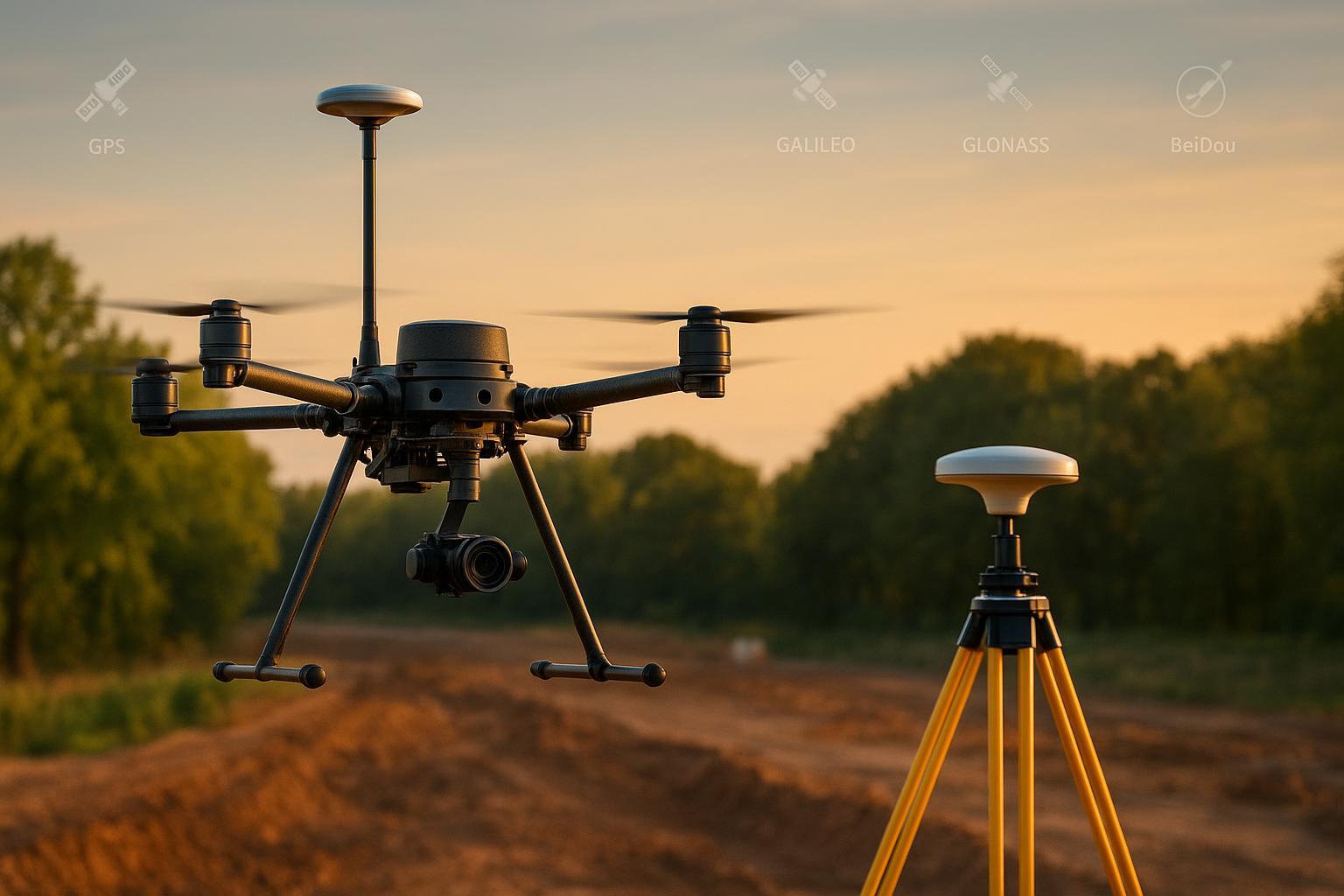

Ultimate Guide to Multi‑Constellation GNSS RTK for Surveying

On a windy March morning, our mapping drone lost its RTK fix twice while flying a tree‑line corridor. Same airframe, same receiver, same cellular plan. The only variable we changed between missions? Constellations. After switching from GPS‑only to a multi‑constellation setup (GPS+Galileo+GLONASS+BeiDou), the fixed solution held through the same turns, with fewer cycle slips and faster re‑acquisitions after brief occlusions. That pattern has repeated across many projects. In this guide, I’ll explain why—without the academic fog—and how to engineer those gains into your UAV surveying stack. For searchers: this guide focuses on multi‑constellation GNSS RTK in real UAV deployments.

Key concepts without the jargon

If we align on a few core ideas, the rest of the integration choices become obvious.

Multi‑constellation vs multi‑frequency

Multi‑constellation means using satellites from different systems (GPS, Galileo, GLONASS, BeiDou). More satellites, spread across the sky, generally improve geometry and availability. Multi‑frequency means tracking multiple bands from the same satellites (e.g., GPS L1/L2/L5; Galileo E1/E5). Multiple frequencies let the engine correct ionospheric delay better and resolve carrier‑phase ambiguities more robustly. They’re complementary: multi‑constellation improves geometry; multi‑frequency strengthens the measurement model and speeds/steadies ambiguity resolution. For RTK, you want both when weight, power, and cost allow. For signal background and bands, see GPS general introduction (ESA/Navipedia).

Satellite geometry and PDOP/HDOP

Your position error roughly scales as DOP × UERE (user range error). A lower PDOP/HDOP means satellite geometry amplifies errors less, so your solution is tighter. Multi‑constellation usually lowers PDOP because it spreads satellites more evenly around you. For a concise definition and typical masks used in practice, Penn State’s geospatial course notes are a solid reference: PDOP explained and common thresholds (Penn State, GEOG 862). Researchers also discuss how multi‑GNSS affects DOP behavior analytically in the Journal of Navigation: remarks on PDOP for multi‑GNSS (2014, Journal of Navigation).

Ambiguity resolution and cycle slips

RTK’s accuracy comes from fixing integer ambiguities on the carrier phase. On a moving UAV, rapid attitude changes, prop wash, and brief obscurations cause phase discontinuities (cycle slips). More satellites and frequencies give the engine redundancy to detect and repair slips and to maintain a “fixed” solution during short dropouts. That’s why you’ll often notice faster re‑acquisition and steadier fixes when you enable more constellations and bands.

Multipath and EMI on airframes

Reflections from arms, landing gear, and payloads create multipath that corrupts phase; onboard electronics emit broadband noise that lowers SNR and triggers slips. Typical culprits: ESCs, motors, switch‑mode regulators, and high‑power video/cellular links. A practical overview of EMI challenges for UAVs is here: EMI shielding for drones (TE Connectivity). For receiver‑specific integration, u‑blox’s guidance is useful even if you’re not using their silicon: ZED‑F9P Integration Manual (u‑blox).

Why multi‑constellation GNSS RTK matters for UAV surveying

When a drone banks into a corridor or pops behind a crane, visibility changes fast. This is where multi‑constellation GNSS RTK earns its keep. With more tracked satellites above your elevation/SNR masks, the engine can keep PDOP lower and maintain redundancy when part of the sky disappears. Additional frequencies (L5/E5, etc.) and constellations provide more independent equations for the filter, so integer fixing often stabilizes sooner after takeoff and after short signal interruptions. The redundancy also helps detect outliers and weight down weak signals (e.g., low‑elevation, low SNR) without collapsing the solution. Baseline and latency still matter: if you stretch RTK beyond roughly 10–20 km or let correction latency spike, you’ll see more float states; ESA’s fundamentals remain good background reading: RTK fundamentals (ESA/Navipedia). For a simple latency rule of thumb relative to update rate, see this u‑blox forum discussion.

Think of it this way: multi‑constellation is like having more scaffolding around your solution. If one beam gets knocked out by a blade reflection or a brief tree occlusion, the structure doesn’t collapse.

Common engineering mistakes that erase the gains

I’ve watched teams enable every constellation and frequency—and still struggle. Usually, one of these issues is to blame.

1. Treating “more satellites” as automatically “better.” Pulling in very low‑elevation signals with poor SNR raises multipath risk and destabilizes the filter. Start with ~15° elevation mask and adjust after logging your airframe’s SNR patterns. Useful vendor example: Elevation/SNR mask starting point (Emlid RS3).

2. Antenna placement and ground plane missteps. Mounting close to prop arcs or carbon structures creates self‑shadowing and multipath. Too‑small or absent ground planes increase back lobes and pattern ripple. Changing a radome or ground plane without re‑validation can shift the phase center and invalidate any calibration. Background: Antenna sensitivity to site‑dependent errors (UNAVCO).

3. Ignoring antenna PCV/PCO and radome effects. Vertical accuracy suffers if PCV isn’t stable or if you modify the near‑field with a different radome. Calibration context and ANTEX usage: Using antenna PCVs (IGS/GPS World) and NGS ANTCAL FAQ (NOAA).

4. EMI and sloppy cabling. Running GNSS coax alongside high‑current ESC leads or coiling excess cable invites conducted/radiated noise and common‑mode currents. Bond ground planes cleanly, add ferrites at enclosure boundaries, and maintain separation from LTE/FPV transmitters. A practical OEM reference: BD990 Product Guide (Trimble).

5. Leaving firmware at factory defaults. Don’t assume defaults fit UAV dynamics. Tune elevation/SNR masks, constellation weighting, and dynamics models. Log, adjust, repeat. Also watch correction stream content (RTCM 3.x messages, rates) and ensure your NTRIP link is low‑latency and resilient; for protocol context: NTRIP Rev1 vs Rev2 (SNIP).

A practical improvement checklist (do‑this‑now)

Antenna selection. Choose a multi‑band, multi‑constellation RHCP antenna with documented low axial ratio and stable PCV across bands. Prefer models with available calibration files when applicable. Context on what drives antenna performance: Antenna phase center and axial ratio priorities (Harxon explainer).

Mounting and ground plane. Elevate the antenna on a rigid mast above prop arcs; keep roughly 10–15 cm clearance from carbon structures. Use the largest practical circular ground plane (often 80–120 mm+ on small UAVs) and verify pattern effects. Avoid changing radomes mid‑project.

EMI/shielding. Separate GNSS from ESCs, regulators, and high‑power RF. Use braided shields, conductive gaskets, and ferrites at bulkhead exits. Bond the ground plane to chassis at a single clean point to avoid loops.

Cabling. Use low‑loss coax sized for run length (e.g., RG‑316 only for very short, RG‑142/LMR‑195 class for longer). Avoid tight bends and strain on MMCX/SMA. Don’t coil excess—cut to length.

Firmware and corrections. Start with a 15° elevation mask and a sensible SNR mask (mid‑30s dB‑Hz), enable all supported constellations and bands, then weight down persistently weak performers. Keep RTCM 3.x at ≥1 Hz, with sub‑second end‑to‑end latency.

Calibration and alignment. Survey lever arms to IMU and camera precisely; document the antenna reference point. If you change radome or mount height, re‑verify PCO/PCV impacts and update parameters.

Validation. Log raw observables, SNR, PDOP, cycle slips, and RTK status at ≥5 Hz. Fly repeatable profiles (hover, banked turns, corridor, loiter) and compare fixed/float ratio and re‑acquisition time.

Field‑style A/B scenario you can replicate

Here’s the test recipe we use when qualifying multi‑constellation GNSS RTK on survey airframes. The goal isn’t to publish universal numbers—it’s to help you predict how your own platform will behave.

Setup A (control): GPS‑only, dual‑frequency (L1/L2), same receiver/antenna, same airframe, same firmware. Elevation mask 15°, identical SNR mask. Setup B (treatment): GPS+Galileo+GLONASS+BeiDou enabled, multi‑band. Same masks and dynamics model; only constellation inclusion changes.

Environments (same scripted flight plan, 20–25 minutes each): open‑sky test field; tree‑line corridor (20–60 m AGL); low‑rise urban (cranes, rooftops, cellular) within legal limits; RF‑noisy site (near a known interference source, with caution).

What to log (rover at ≥5 Hz; base at ≥1 Hz): time‑to‑first‑fixed; fixed/float ratio over distance/time; PDOP/HDOP trend and satellite count per epoch; SNR variance by elevation bin; cycle slip counts per constellation/frequency; re‑acquisition time after brief occlusions (e.g., 2–4 s loss events in corridor turns).

How we typically see it play out (engineering observations, 2024–2026 projects): open sky—multi‑constellation shortens time‑to‑fixed and delivers a steadier fixed state with fewer slips, though both A and B are good. Tree‑line—Setup B maintains fixes through turns more often; re‑acquisition is quicker after leaf‑on occlusions; PDOP remains lower with a healthier elevation mix. Low‑rise urban—Setup B shows fewer float episodes when skimming building edges; added satellites above the masks help the filter reject low‑quality outliers. RF‑noisy site—results hinge on your EMI control. When cabling and shielding are disciplined, Setup B is more resilient; when EMI is poor, both suffer—multi‑constellation can’t hide bad RF hygiene.

Neutral micro‑example: On a recent corridor project, we swapped a compact patch for a calibrated, low‑axial‑ratio, multi‑band antenna from GNSource mounted on a 100 mm ground plane standoff. With the same receiver and masks, Setup B (multi‑constellation) showed notably fewer cycle slips in banked turns than Setup A. We attribute the difference to both the constellation diversity and the antenna’s cleaner pattern/PCV stability; the point is reproducibility—if you change only one variable at a time and log thoroughly, you can isolate where the gains come from.

Two things to keep in mind: don’t over‑weight a constellation with systematically weaker SNR on your airframe—log first, then tune. And if your region has poor visibility for one constellation, you may get most of the benefit with GPS+Galileo alone.

Trade‑offs snapshot (illustrative, for planning; validate on your platform):

Replication tips: keep everything identical except the constellation enable set; fly the same mission with the same battery stage and wind when possible. Export RINEX and RTK status logs; plot PDOP and fix state over time; annotate turns/occlusions. If you can’t control cellular variability, run multiple sorties and compare medians.

Key takeaways

• Multi‑constellation GNSS RTK improves geometry and redundancy, stabilizing fixes and speeding re‑acquisition when the sky view changes.

• Antenna and RF integration are as important as enabling constellations—stable PCV, good ground plane, and clean EMI practices turn theoretical gains into real ones.

• Start with conservative masks, enable everything, then down‑weight underperformers based on logs.

• Validate with an A/B flight script and full observables logging before trusting results in production.

Short FAQ

• Is more satellites always better? Not automatically. Low‑elevation, low‑SNR signals can hurt more than help. Start with a 15° mask and tune using your logs. See PDOP basics here: PDOP explained (Penn State).

• Do I need CRPA for survey drones? Usually not. CRPA can add resilience to jamming/spoofing, but it’s heavier, costlier, and integration‑intensive. If you operate in contested RF, investigate CRPA with proper testing; for most commercial survey work, a well‑integrated multi‑band antenna with EMI discipline is the bigger win. Background: CRPA demystified (GPS World).

• What elevation/SNR masks should I start with? Elevation around 15° and SNR masks near the mid‑30s dB‑Hz are practical starting points. Adjust after reviewing your SNR vs. elevation plots and cycle‑slip statistics. Example vendor guidance: Emlid RS3 quick‑start.

• Network RTK vs. local base for UAVs? If you have reliable 4G/5G with low latency, NTRIP/VRS is convenient and can work well for typical ranges. For remote or jittery networks, a surveyed local base with a radio link often yields steadier latency and fixes. Background: Corrections delivery methods (Emlid).

• How many times should I repeat tests before production? Run at least 3–5 flights per environment and compare medians and interquartile ranges. If results are inconsistent, investigate EMI and cabling before blaming constellations.

Light next steps

Pilot the A/B test on your own platform this week. If you determine antenna stability is your bottleneck, shortlist calibrated, low‑axial‑ratio, multi‑band models, and validate ground‑plane and radome choices with logs. Above all, make one change at a time, document everything, and let the data lead.
