High-Precision Measurement
High-Precision GNSS Measurement Antennas
GNSS measurement antennas for surveying, deformation monitoring and reference stations, with built-in platforms for precision agriculture and marine-survey equipment. Choose by exact signal coverage, receiver interface and installation conditions.
Application Overview
Choose the Antenna for Your Measurement System
Select an antenna by the receiver's enabled GNSS signals, phase-center requirement, interface and installation. A phase-center specification describes the antenna; it does not guarantee the positioning accuracy of a complete RTK or monitoring system.
The external TDXL-BA1500 serves surveying, deformation monitoring and reference-station installations. The built-in TDXL-BA700 is an option for geodetic and marine surveying, precision agriculture and monitoring equipment.
Review built-in versus external installation and active versus passive reception separately. Active models need a compatible antenna supply and a cable-loss budget; passive platforms require receiver-chain review. Environmental ratings, calibration evidence and mounting details must be checked for the specific model and configuration.
Selection & Integration Checks
Phase-center specification
Separate antenna parameters from whole-system accuracy.
Signal coverage
Match the exact signals, not just constellation names.
Receiver & cable
Check active/passive type, supply, interface and cable loss.
Mechanical integration
Review enclosure, mounting drawing and cable routing.
Environmental evidence
Confirm model-specific IP ratings and available test reports.
Product Catalog
Measurement Antenna Models
31 models in this category. Click Request Quote on any row to pre-fill the inquiry form.
| Model | Type | Frequencies | Key Specs | Form Factor | Action | |
|---|---|---|---|---|---|---|
 | TDXL-CA341 | 3D Choke Ring | BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo full + L-Band | Phase center ±1mm · 7dBi gain · 46dB LNA · MTBF 30,000h | Ø380mm · 10kg · N-type | |
 | TDXL-900M | Full-band Helical | BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo + SBAS L-Band | Phase center ±5mm · 34dB LNA · IP67 · Axial ratio ≤3dB | Ø23mm × 56mm · 16g · SMA-J | |
| TDXL-800M | Multi-freq Helical | BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/E5b | 34dB LNA · IP67 · Phase center ±5mm · NF ≤1.5dB | Ø23mm × 56mm · 16g · SMA-J | ||
| TDXL-802M | BDS-focused Helical | BDS B1I/B3I/B1C/B2a/B2b, GPS L1/L2/L5, GLONASS, Galileo | 8-arm coupling · 4-point feed · Axial ratio ≤2dB · IP67 | Ø23mm × 56mm · 16g · SMA-J | ||
| TDXL-GGBR8I05 | Full-band Helical | BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo + L-Band | 34dB LNA · Max gain ≥2dBi · Axial ratio ≤3dB | Ø27.5mm × 56mm · 18g · SMA-J | ||
| TDXL-GGBR7I04 | Built-in Helical | BDS/GPS/GLONASS/Galileo/SBAS/QZSS (full constellation) | IPEX gen1 connector · Ground-segmentation tech · 34dB LNA | 32mm × 44.8mm · 6g · IPEX | ||
| TDXL-GGBR7I05 | Built-in Helical | BDS B1/B2/B3, GPS L1/L2/L5, GLONASS, Galileo E1/E5a/E5b | 34dB LNA · IP67 · Max gain ≥2dBi · NF ≤1.5dB | Ø27.5mm × 56mm · 18g · SMA-J | ||
 | TDXL-BA700 | Internal Measurement | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b | Reactance network anti-multipath · Phase center ±2 mm | Built-in form factor | |
Specifications & application — TDXL-BA700Application & integrationBuilt-in GNSS antenna for geodetic and marine surveying, precision agriculture and deformation-monitoring equipment. Share your receiver, enclosure, cable and mounting requirements for an integration quote.
| ||||||
 | TDXL-HA400 | Multi-GNSS Single-Freq Helical | BDS B1 · GPS L1 · GLONASS G1 · Galileo E1 | 34±2dB LNA · Max gain ≤2dBi · Axial ratio ≤3dB · IP67 | 11g · SMA-J · VSWR <1.8 | |
 | TDXL-HA500 | GPS L1/L5 Helical | GPS L1 · L5 | 32±3dB LNA · L5 gain ≥-1dBi · L1 ≥-1.5dBi · NF ≤1.5dB · IP67 | 16g · SMA-K (customizable) | |
| TDXL-801M | Built-in Multi-Freq Helical | BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b | 34±2dB LNA · Phase center ±5mm · NF ≤1.5dB · Max gain ≥2dBi | ≤Ø20.4 × 44mm · 16g · IPEX gen1 (length customizable) | ||
| TDXL-810M | GPS Dual-Satellite Helical | GPS L1/L5 · BDS B1 · GLONASS G1 · Galileo E1 | 34±2dB LNA · Phase center ±5mm · Axial ratio ≤3dB · NF ≤1.5dB | ≤Ø23 × 56mm · 16g · SMA-J | ||
| TDXL-811M | Built-in GPS Dual-Satellite | GPS L1/L5 · BDS B1 · GLONASS G1 · Galileo E1 | 34±2dB LNA · Phase center ±5mm · Axial ratio ≤3dB | ≤Ø20.4 × 44mm · 16g · SMA-J | ||
| TDXL-813M | Ultra-Light Built-in Multi-Freq | BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b | 34±2dB LNA · Max gain ≥0.5dBi · Phase center ±5mm · NF ≤1.5dB | ≤Ø20.4 × 44mm · 7g · SMA-J | ||
 | TDXL-230MH | BDS Spiral Helical | BDS B3I/B1I/B1C · GPS L1 · GLONASS G1 | 8-arm coupling + 4-point feed · 32±2dB LNA · B1 ≥1.5dBi / B3 ≥2dBi · Axial ratio ≤2dB | ≤Ø23 × 56mm · 16g · SMA-J · IP67 | |
| TDXL-GGBR6I05 | BDS Helical (High-Power Resistant) | BDS B1I/B1C · B3I | Front-end high-power limiter · 30±2dB LNA · Axial ratio ≤2dB · Phase center ±5mm | ≤Ø23 × 56mm · 16g · SMA-J | ||
| TDXL-GGBR8I04 | Built-in Full-Band Helical | BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E2/E5a/E5b/E6 · L-Band | Dual-band reception architecture · 32±2dB LNA · NF ≤1.5dB · Phase center ±5mm | ≤Ø24.5 × 40.4mm · 18g · IPEX (customizable) | ||
 | TDXL-BA200 | Ultra-Compact Built-in | BDS B1 · GPS L1 | Bias-feed RHCP · 28±2dB LNA · Max gain ≥1dBi · NF ≤1.5dB | ≤18 × 18mm · 10g · IPEX gen4 | |
 | TDXL-BA300 | Air-Type Full-Band External | BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b · L-Band | Air dielectric · 40±2dB LNA · Zenith gain ≥5.5dBi · Dual-freq delay ≤5ns | External · Driver-test & CORS reference | |
 | TDXL-BA1500 | Flagship External Measurement | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b | Phase center ±2 mm · 40±2 dB LNA · Max gain ≥5.5 dBi · NF ≤2.0 dB | Ø130±0.50 × 57.30±1 mm · ≤260 g · TNC-K | |
Specifications & application — TDXL-BA1500Application & integrationExternal GNSS measurement antenna for surveying, deformation monitoring and reference stations. Match the TNC-K interface, 3.0–12 V DC supply and mounting arrangement to your receiver and installation.
| ||||||
| TDXL-SF400 | Single-Band L1 Helical | BDS B1 · GPS L1 · GLONASS G1 | 32±2dB LNA · Phase center ±5mm · Max gain ≥2dBi · NF ≤1.5dB | ≤Ø23 × 56mm · 18g · SMA-J | ||
| TDXL-SF500 | BDS B3 Single-Band Helical | BDS B3 | Lightweight handheld · 30±2dB LNA · Axial ratio ≤2dB · NF ≤1.5dB | ≤Ø23 × 56mm · 16g · SMA-J | ||
| TDXL-CE2511A | Built-in Active Ceramic | GPS L1/L2 · BDS B1/B2 | Bias-feed ceramic · 30±3dB LNA · Zenith gain ≥3dBi · Axial ratio ≤2dB | ≤25 × 25 × 11mm · 25g · SMA-J (customizable) | ||
 | TDXL-BA600View specifications → | Multi-frequency active external GNSS antenna | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b | 40 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center | TNC-K · ≤320 g | |
 | TDXL-BA610View specifications → | BeiDou-focused active external GNSS antenna | BDS B1I/B1C/B3I · GPS L1 · GLONASS G1 · Galileo E1 | 40 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center | TNC-K · ≤320 g · Ø130 ± 1 mm × 67 ± 1 mm | |
 | TDXL-BA720View specifications → | Compact active external GNSS antenna | BDS B1I/B1C/B2b/B3I · GPS L1/L2 · GLONASS G1/G2 · Galileo E1/E5b | 34 ± 2 dB LNA · ≥4.5 dBi · ≤2 mm phase center | TNC-K · ≤180 g · Ø100 ± 1 mm × 60.30 ± 1 mm | |
| TDXL-BA730View specifications → | Lightweight active embedded GNSS antenna | BDS B1I/B1C/B2b/B3I · GPS L1/L2 · GLONASS G1/G2 · Galileo E1/E5b | 34 ± 2 dB LNA · ≥4 dBi · ≤2 mm phase center | MCX · ≤100 g · 59 mm × 63 mm × 17 mm | ||
 | TDXL-BA800View specifications → | Broadband active external GNSS antenna | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b/E6 | 38 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center | TNC-K · ≤350 g | |
 | TDXL-BA802View specifications → | Civil multi-band active external GNSS antenna | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2/G3 · Galileo E1/E5a/E5b/E6 | 35 ± 2 dB LNA · ≥5 dBi · ±2 mm phase center | TNC-K · ≤350 g · Ø130 ± 0.50 mm × 57.30 ± 1 mm | |
 | TDXL-BA810View specifications → | Passive broadband GNSS antenna | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b/E6 | ≥5 dBi | TNC-K · ≤350 g | |
 | TDXL-BA900View specifications → | Broadband active embedded GNSS antenna | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b/E6 | 38 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center | MCX · ≤350 g · Ø110.5 ± 0.1 mm × 16 ± 0.3 mm | |

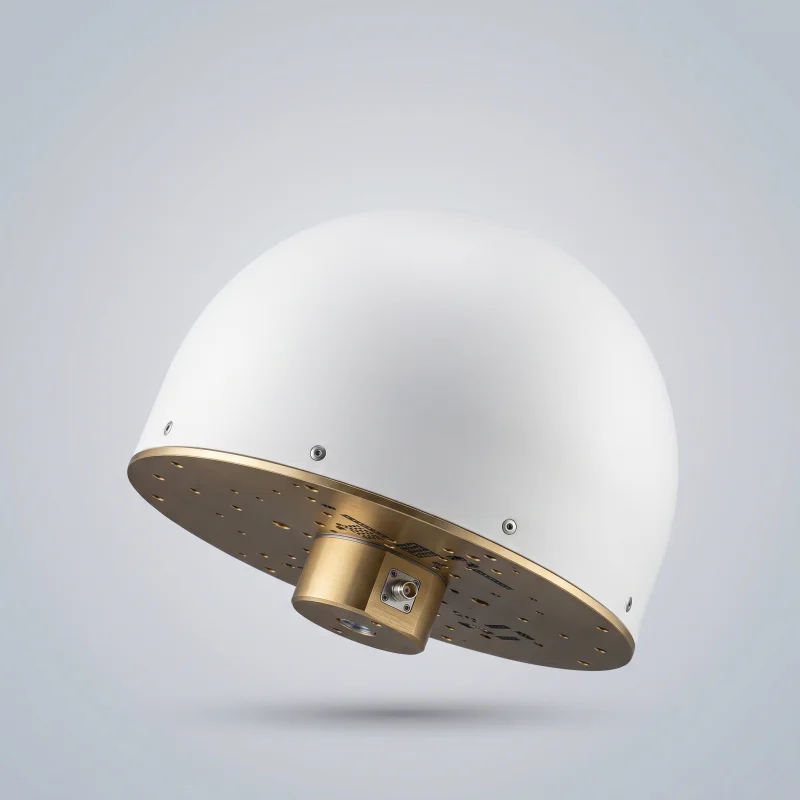

TDXL-CA341
3D Choke Ring
- Frequencies
- BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo full + L-Band
- Key Specs
- Phase center ±1mm · 7dBi gain · 46dB LNA · MTBF 30,000h
- Form Factor
- Ø380mm · 10kg · N-type

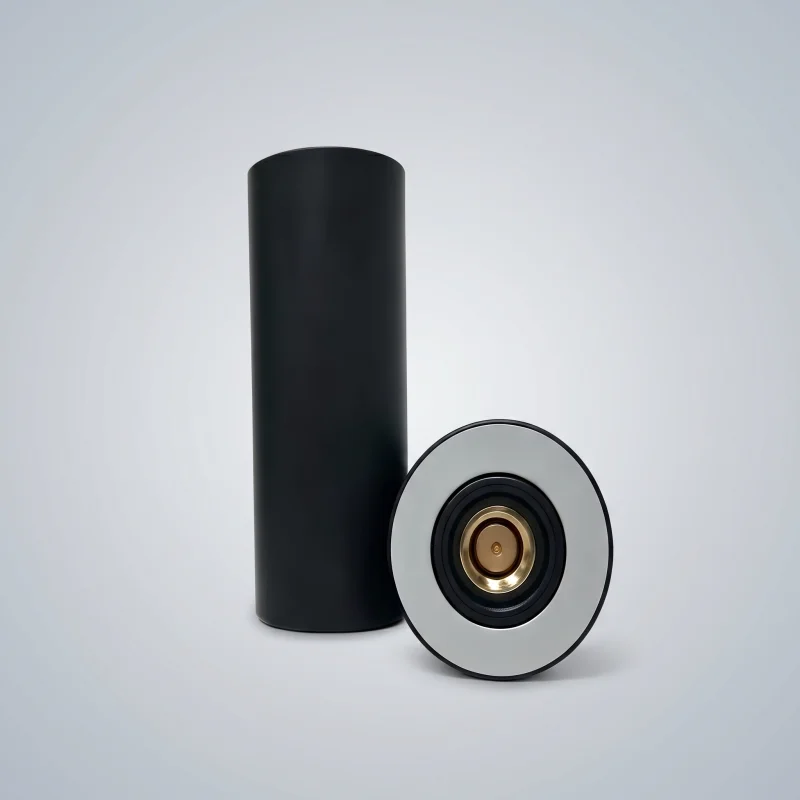

TDXL-900M
Full-band Helical
- Frequencies
- BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo + SBAS L-Band
- Key Specs
- Phase center ±5mm · 34dB LNA · IP67 · Axial ratio ≤3dB
- Form Factor
- Ø23mm × 56mm · 16g · SMA-J
TDXL-800M
Multi-freq Helical
- Frequencies
- BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo E1/E5b
- Key Specs
- 34dB LNA · IP67 · Phase center ±5mm · NF ≤1.5dB
- Form Factor
- Ø23mm × 56mm · 16g · SMA-J
TDXL-802M
BDS-focused Helical
- Frequencies
- BDS B1I/B3I/B1C/B2a/B2b, GPS L1/L2/L5, GLONASS, Galileo
- Key Specs
- 8-arm coupling · 4-point feed · Axial ratio ≤2dB · IP67
- Form Factor
- Ø23mm × 56mm · 16g · SMA-J
TDXL-GGBR8I05
Full-band Helical
- Frequencies
- BDS B1/B2/B3, GPS L1/L2/L5, GLONASS G1/G2, Galileo + L-Band
- Key Specs
- 34dB LNA · Max gain ≥2dBi · Axial ratio ≤3dB
- Form Factor
- Ø27.5mm × 56mm · 18g · SMA-J
TDXL-GGBR7I04
Built-in Helical
- Frequencies
- BDS/GPS/GLONASS/Galileo/SBAS/QZSS (full constellation)
- Key Specs
- IPEX gen1 connector · Ground-segmentation tech · 34dB LNA
- Form Factor
- 32mm × 44.8mm · 6g · IPEX
TDXL-GGBR7I05
Built-in Helical
- Frequencies
- BDS B1/B2/B3, GPS L1/L2/L5, GLONASS, Galileo E1/E5a/E5b
- Key Specs
- 34dB LNA · IP67 · Max gain ≥2dBi · NF ≤1.5dB
- Form Factor
- Ø27.5mm × 56mm · 18g · SMA-J

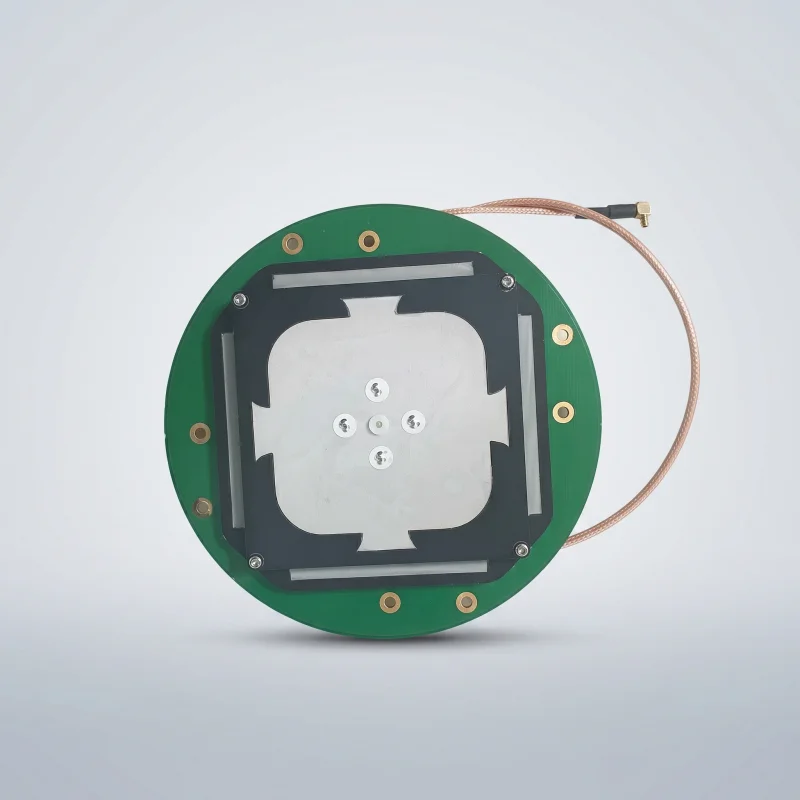

TDXL-BA700
Internal Measurement
- Frequencies
- BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b
- Key Specs
- Reactance network anti-multipath · Phase center ±2 mm
- Form Factor
- Built-in form factor
Specifications & application — TDXL-BA700
Application & integration
Built-in GNSS antenna for geodetic and marine surveying, precision agriculture and deformation-monitoring equipment. Share your receiver, enclosure, cable and mounting requirements for an integration quote.
- Allow space for the antenna, ground plane, cable and connector within the host enclosure. Define environmental protection at the complete-device level.
- Phase-center error is an antenna specification, not a positioning-accuracy guarantee. Receiver, corrections, installation and site conditions determine system performance.
- Operating frequency
- 1170–1277 MHz · 1559–1609 MHz
- Impedance
- 50 Ω
- Polarization
- RHCP
- Maximum gain
- ≥5.5 dBi
- Axial ratio
- ≤3 dB
- Phase center error
- ±2 mm
- Dual-frequency delay difference
- ≤5 ns
- Operating voltage
- 3.0–12 V DC
- Current draw
- ≤50 mA
- Noise figure
- ≤2.0 dB
- Output VSWR
- <2.0:1
- In-band flatness
- ±2 dB
- Operating temperature
- −40°C to +80°C
- Storage temperature
- −45°C to +85°C
- Humidity (non-condensing)
- 95% RH

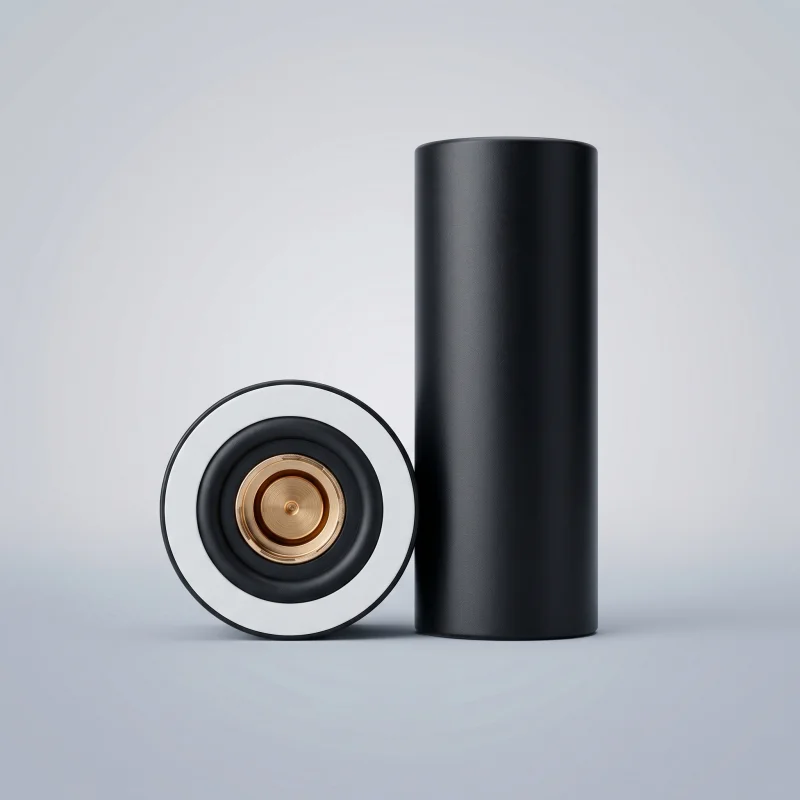

TDXL-HA400
Multi-GNSS Single-Freq Helical
- Frequencies
- BDS B1 · GPS L1 · GLONASS G1 · Galileo E1
- Key Specs
- 34±2dB LNA · Max gain ≤2dBi · Axial ratio ≤3dB · IP67
- Form Factor
- 11g · SMA-J · VSWR <1.8

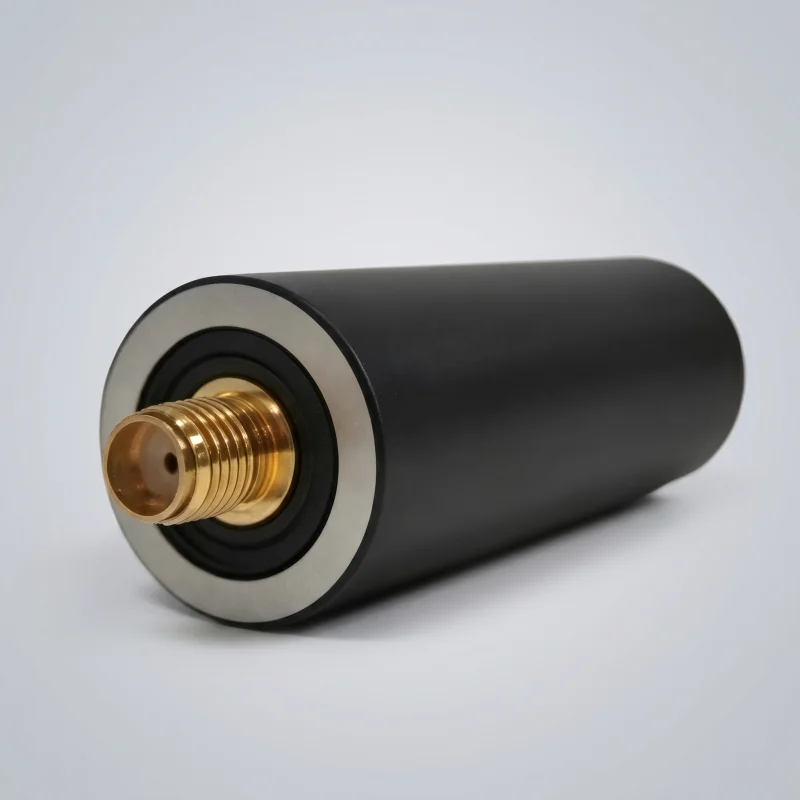

TDXL-HA500
GPS L1/L5 Helical
- Frequencies
- GPS L1 · L5
- Key Specs
- 32±3dB LNA · L5 gain ≥-1dBi · L1 ≥-1.5dBi · NF ≤1.5dB · IP67
- Form Factor
- 16g · SMA-K (customizable)
TDXL-801M
Built-in Multi-Freq Helical
- Frequencies
- BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b
- Key Specs
- 34±2dB LNA · Phase center ±5mm · NF ≤1.5dB · Max gain ≥2dBi
- Form Factor
- ≤Ø20.4 × 44mm · 16g · IPEX gen1 (length customizable)
TDXL-810M
GPS Dual-Satellite Helical
- Frequencies
- GPS L1/L5 · BDS B1 · GLONASS G1 · Galileo E1
- Key Specs
- 34±2dB LNA · Phase center ±5mm · Axial ratio ≤3dB · NF ≤1.5dB
- Form Factor
- ≤Ø23 × 56mm · 16g · SMA-J
TDXL-811M
Built-in GPS Dual-Satellite
- Frequencies
- GPS L1/L5 · BDS B1 · GLONASS G1 · Galileo E1
- Key Specs
- 34±2dB LNA · Phase center ±5mm · Axial ratio ≤3dB
- Form Factor
- ≤Ø20.4 × 44mm · 16g · SMA-J
TDXL-813M
Ultra-Light Built-in Multi-Freq
- Frequencies
- BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b
- Key Specs
- 34±2dB LNA · Max gain ≥0.5dBi · Phase center ±5mm · NF ≤1.5dB
- Form Factor
- ≤Ø20.4 × 44mm · 7g · SMA-J

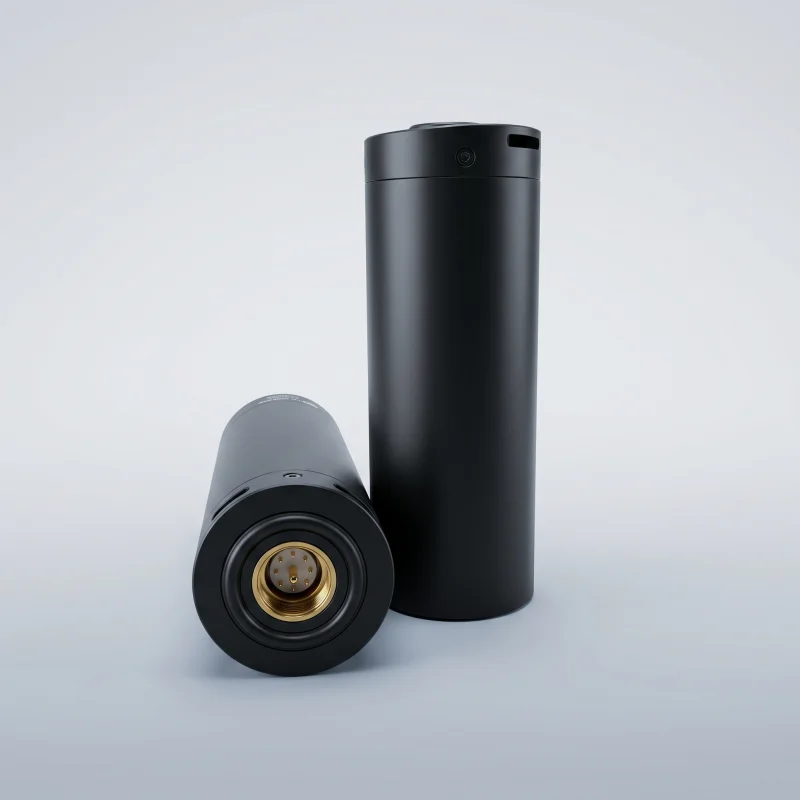

TDXL-230MH
BDS Spiral Helical
- Frequencies
- BDS B3I/B1I/B1C · GPS L1 · GLONASS G1
- Key Specs
- 8-arm coupling + 4-point feed · 32±2dB LNA · B1 ≥1.5dBi / B3 ≥2dBi · Axial ratio ≤2dB
- Form Factor
- ≤Ø23 × 56mm · 16g · SMA-J · IP67
TDXL-GGBR6I05
BDS Helical (High-Power Resistant)
- Frequencies
- BDS B1I/B1C · B3I
- Key Specs
- Front-end high-power limiter · 30±2dB LNA · Axial ratio ≤2dB · Phase center ±5mm
- Form Factor
- ≤Ø23 × 56mm · 16g · SMA-J
TDXL-GGBR8I04
Built-in Full-Band Helical
- Frequencies
- BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E2/E5a/E5b/E6 · L-Band
- Key Specs
- Dual-band reception architecture · 32±2dB LNA · NF ≤1.5dB · Phase center ±5mm
- Form Factor
- ≤Ø24.5 × 40.4mm · 18g · IPEX (customizable)

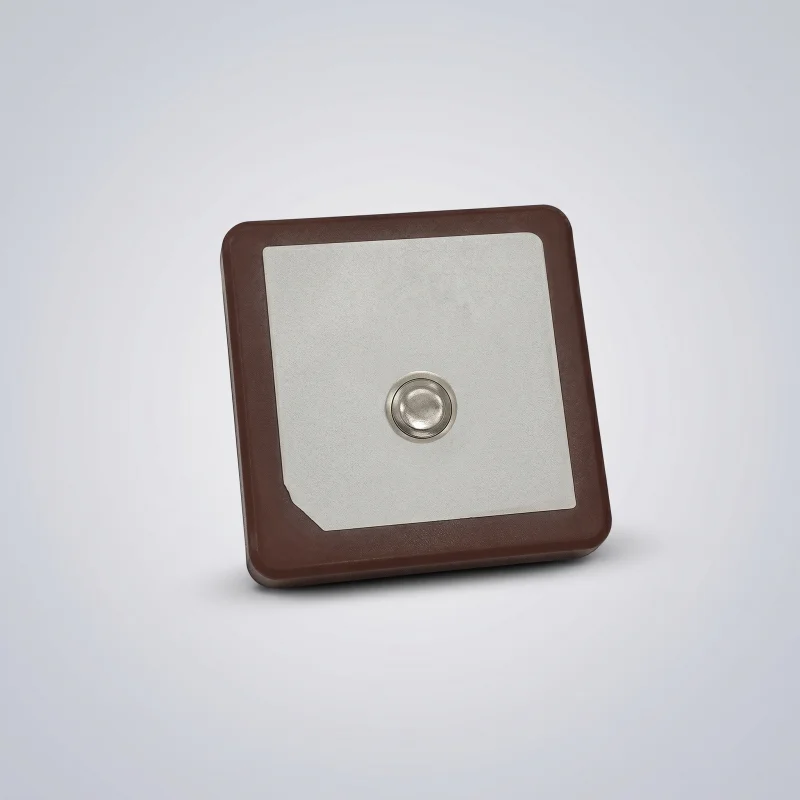

TDXL-BA200
Ultra-Compact Built-in
- Frequencies
- BDS B1 · GPS L1
- Key Specs
- Bias-feed RHCP · 28±2dB LNA · Max gain ≥1dBi · NF ≤1.5dB
- Form Factor
- ≤18 × 18mm · 10g · IPEX gen4
TDXL-BA300
Air-Type Full-Band External
- Frequencies
- BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b · L-Band
- Key Specs
- Air dielectric · 40±2dB LNA · Zenith gain ≥5.5dBi · Dual-freq delay ≤5ns
- Form Factor
- External · Driver-test & CORS reference
TDXL-BA1500
Flagship External Measurement
- Frequencies
- BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b
- Key Specs
- Phase center ±2 mm · 40±2 dB LNA · Max gain ≥5.5 dBi · NF ≤2.0 dB
- Form Factor
- Ø130±0.50 × 57.30±1 mm · ≤260 g · TNC-K
Specifications & application — TDXL-BA1500
Application & integration
External GNSS measurement antenna for surveying, deformation monitoring and reference stations. Match the TNC-K interface, 3.0–12 V DC supply and mounting arrangement to your receiver and installation.
- Plan the mounting-thread engagement, cable route and receiver power budget for your installation.
- Phase-center error is an antenna specification, not a positioning-accuracy guarantee. Receiver, corrections, installation and site conditions determine system performance.
- Operating frequency
- 1170–1278 MHz · 1559–1605 MHz
- Impedance
- 50 Ω
- Polarization
- RHCP
- Maximum gain
- ≥5.5 dBi
- Axial ratio
- ≤3 dB
- Phase center error
- ±2 mm
- LNA gain
- 40±2 dB
- Noise figure
- ≤2.0 dB
- Output VSWR
- ≤2.0
- In-band flatness
- ±2 dB
- Dual-frequency delay difference
- ≤5 ns
- Operating voltage
- 3.0–12 V DC
- Current draw
- ≤45 mA
- Connector
- TNC-K
- Dimensions
- Ø130±0.50 × 57.30±1 mm
- Weight
- ≤260 g
- Operating temperature
- −40°C to +80°C
- Storage temperature
- −45°C to +85°C
- Humidity (non-condensing)
- 95% RH
TDXL-SF400
Single-Band L1 Helical
- Frequencies
- BDS B1 · GPS L1 · GLONASS G1
- Key Specs
- 32±2dB LNA · Phase center ±5mm · Max gain ≥2dBi · NF ≤1.5dB
- Form Factor
- ≤Ø23 × 56mm · 18g · SMA-J
TDXL-SF500
BDS B3 Single-Band Helical
- Frequencies
- BDS B3
- Key Specs
- Lightweight handheld · 30±2dB LNA · Axial ratio ≤2dB · NF ≤1.5dB
- Form Factor
- ≤Ø23 × 56mm · 16g · SMA-J
TDXL-CE2511A
Built-in Active Ceramic
- Frequencies
- GPS L1/L2 · BDS B1/B2
- Key Specs
- Bias-feed ceramic · 30±3dB LNA · Zenith gain ≥3dBi · Axial ratio ≤2dB
- Form Factor
- ≤25 × 25 × 11mm · 25g · SMA-J (customizable)
TDXL-BA600
Multi-frequency active external GNSS antenna
- Frequencies
- BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b
- Key Specs
- 40 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center
- Form Factor
- TNC-K · ≤320 g
TDXL-BA610
BeiDou-focused active external GNSS antenna
- Frequencies
- BDS B1I/B1C/B3I · GPS L1 · GLONASS G1 · Galileo E1
- Key Specs
- 40 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center
- Form Factor
- TNC-K · ≤320 g · Ø130 ± 1 mm × 67 ± 1 mm
TDXL-BA720
Compact active external GNSS antenna
- Frequencies
- BDS B1I/B1C/B2b/B3I · GPS L1/L2 · GLONASS G1/G2 · Galileo E1/E5b
- Key Specs
- 34 ± 2 dB LNA · ≥4.5 dBi · ≤2 mm phase center
- Form Factor
- TNC-K · ≤180 g · Ø100 ± 1 mm × 60.30 ± 1 mm
TDXL-BA730
Lightweight active embedded GNSS antenna
- Frequencies
- BDS B1I/B1C/B2b/B3I · GPS L1/L2 · GLONASS G1/G2 · Galileo E1/E5b
- Key Specs
- 34 ± 2 dB LNA · ≥4 dBi · ≤2 mm phase center
- Form Factor
- MCX · ≤100 g · 59 mm × 63 mm × 17 mm
TDXL-BA800
Broadband active external GNSS antenna
- Frequencies
- BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b/E6
- Key Specs
- 38 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center
- Form Factor
- TNC-K · ≤350 g
TDXL-BA802
Civil multi-band active external GNSS antenna
- Frequencies
- BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2/G3 · Galileo E1/E5a/E5b/E6
- Key Specs
- 35 ± 2 dB LNA · ≥5 dBi · ±2 mm phase center
- Form Factor
- TNC-K · ≤350 g · Ø130 ± 0.50 mm × 57.30 ± 1 mm
TDXL-BA810
Passive broadband GNSS antenna
- Frequencies
- BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b/E6
- Key Specs
- ≥5 dBi
- Form Factor
- TNC-K · ≤350 g
TDXL-BA900
Broadband active embedded GNSS antenna
- Frequencies
- BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b/E6
- Key Specs
- 38 ± 2 dB LNA · ≥5.5 dBi · ±2 mm phase center
- Form Factor
- MCX · ≤350 g · Ø110.5 ± 0.1 mm × 16 ± 0.3 mm
Flagship Product
TDXL-CA341 — 3D Choke-Ring GNSS Antenna
TDXL-CA341 is a 3D choke-ring GNSS antenna for geodetic networks and reference stations. Compare its signal coverage, 46 ± 2 dB LNA, N-type interface and mounting dimensions with your installation. Choose the cable type and length using the complete RF and receiver power budget.
- Operating bands
- BDS B1/B2/B3 · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E2/E5a/E5b/E6 · L-Band
- Polarization
- RHCP
- Maximum gain
- ≥7.0 dBi
- Axial ratio
- ≤3 dB
- LNA gain
- 46 ± 2 dB
- Noise figure
- ≤2.0 dB
- Phase center
- ±1 mm
- Out-of-band rejection (±100 MHz)
- ≥40 dB
- Operating voltage
- 3.0–12V DC
- Current draw
- ≤50 mA
- Connector
- N-type (female)
- Dimensions
- Ø380 mm × 304 mm
- Weight
- ≤10 kg
- IP rating
- IP67
- MTBF
- 30,000 hours
- Temperature
- -55°C to +85°C
Get a Quote
Request a quote for High-Precision GNSS Measurement antennas
Tell us about your project — we'll respond within 24 hours with pricing, lead time, and technical recommendations tailored to your application.
FAQ
Measurement Antenna FAQs
Common procurement and integration questions for geodetic survey, RTK, and CORS applications.
Does phase-center stability mean the same positioning accuracy for the entire system?
No. BA1500 has a phase-center error specification of ±2 mm; this is an antenna parameter. System positioning performance also depends on the receiver, corrections, installation and multipath. Include any network calibration requirements in your inquiry.
Which GNSS signals do BA1500 and BA700 support?
BA1500 and BA700 support BDS B1I/B1C/B2a/B2b/B3I, GPS L1/L2/L5, GLONASS G1/G2 and Galileo E1/E5a/E5b. Compare the exact model signal coverage with your receiver’s enabled signals.
How should I select LNA gain and cable length?
TDXL-BA1500 specifies 40±2 dB LNA gain and a noise figure of ≤2.0 dB. These values alone do not determine an allowable cable length. Provide the cable type, length, connector losses, receiver gain limits and antenna supply requirements so the complete RF and power budget can be reviewed.
Can BA700 be used for an embedded OEM integration?
BA700 is a built-in GNSS antenna for geodetic and marine surveying, precision agriculture and deformation-monitoring equipment. Send your receiver model, enclosure, mounting drawing, cable requirements and quantity for an integration quote.
Are all measurement antennas IP67 rated?
No. Protection requirements are model- and installation-specific. Include outdoor exposure, connector sealing and enclosure requirements when selecting an antenna.
What should I provide for a BA1500 quotation or receiver compatibility check?
Provide the receiver model, required GNSS signals, cable route and length, mounting drawing, environment and quantity. BA1500 specifies a TNC-K interface, 3–12 VDC supply and ≤45 mA current; verify compatibility with the receiver's antenna power output. Confirm the supplied dimensional drawing and any adapters. MOQ, availability and lead time are quoted for the agreed configuration.
Related Solutions
You might also need
Timing & Synchronization
Precision timing antennas for 5G, telecom, and power infrastructure with 1KV lightning protection.
View Category
Magnetic Mount Antennas
Tool-free magnetic-mount antennas for 4G/5G, Wi-Fi and 433 MHz connectivity — ideal for gateways, routers, and vehicle and asset tracking.
View Category
Fiberglass Omnidirectional Antennas
Weatherproof outdoor fiberglass omni antennas from 300 MHz to 5 GHz for base stations, LoRaWAN gateways and long-range point-to-multipoint links.
View Category
