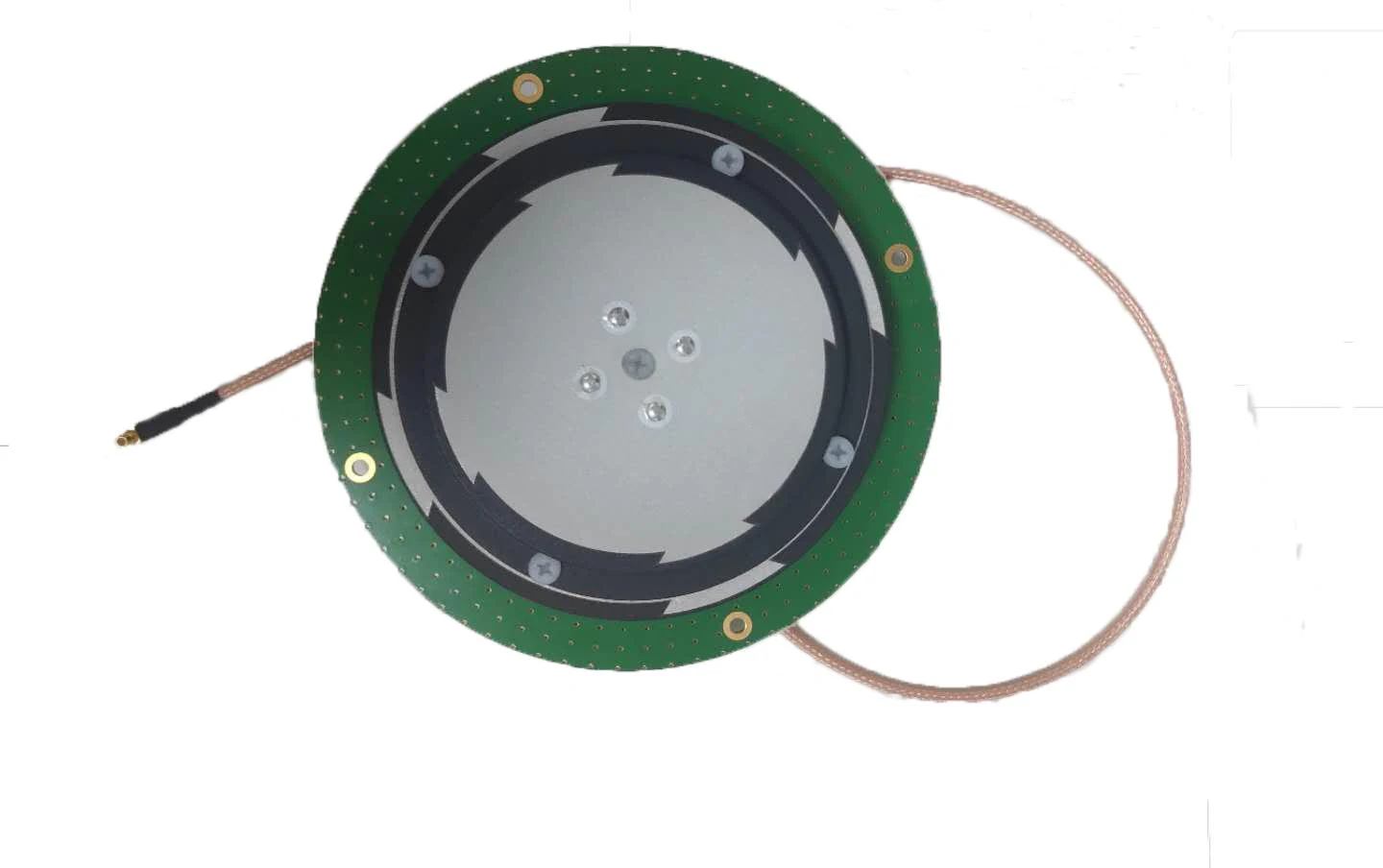

Broadband active embedded GNSS antenna
TDXL-BA900
For geodetic and marine surveying, precision agriculture and deformation-monitoring equipment. Match the selected signals and mechanical interface to your receiver and installation.
- LNA gain
- 38 ± 2 dB
- Connector
- MCX
- Weight
- ≤350 g
Engineering confirmation before ordering
- Specifications are supplier-declared, not independent test certificates. Confirm the current revision, connector, mounting drawing and receiver compatibility before ordering. Phase center error is not a guarantee of positioning accuracy; request a calibration report or ANTEX file if your project requires one.
- The ambiguous Galileo “E2” source label is not listed. L-Band is mentioned by the supplier, but compatibility with any correction service must be checked against its frequency, receiver and subscription requirements.
- This is an embedded antenna, not a sealed outdoor assembly. Review the enclosure, ground plane, cable routing and connector clearance. Cable length or routing changes require engineering confirmation.
- No IP rating is specified in this source. Do not assume sealed outdoor suitability; confirm the installation and environmental requirements.
Technical specifications
| Listed signal selection | BDS B1I/B1C/B2a/B2b/B3I · GPS L1/L2/L5 · GLONASS G1/G2 · Galileo E1/E5a/E5b/E6 |
|---|---|
| Operating frequency | 1164–1300 MHz · 1520–1615 MHz |
| Impedance | 50 Ω |
| Polarization | RHCP |
| Maximum antenna gain | ≥5.5 dBi |
| Axial ratio | ≤3 dB |
| Horizontal coverage | 360° |
| Phase center error (supplier specification) | ±2 mm |
| LNA gain | 38 ± 2 dB |
| Noise figure | ≤2 dB |
| In-band flatness | ±2 dB |
| Operating voltage | 3–12 V DC |
| Current draw | ≤35 mA |
| Dual-frequency delay difference | ≤5 ns |
| Output VSWR | ≤2:1 |
| Operating temperature | −40°C to +80°C |
| Storage temperature | −45°C to +85°C |
| Humidity, non-condensing | 95% RH |
| Connector | MCX |
| Weight | ≤350 g |
| Dimensions (supplier drawing) | Ø110.5 ± 0.1 mm × 16 ± 0.3 mm |
Source: supplier specification: TDXL-BA900, pages 1–2. Revision not stated in the supplied PDF.
