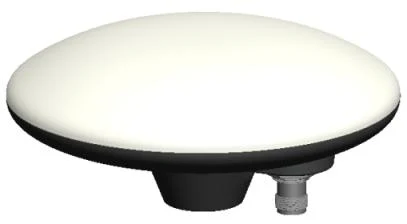

BeiDou-focused active external GNSS antenna
TDXL-BA610
For surveying, deformation monitoring and reference-station projects. Check the antenna calibration and installation requirements of your network before selection.
- LNA gain
- 40 ± 2 dB
- Connector
- TNC-K
- Weight
- ≤320 g
Engineering confirmation before ordering
- Specifications are supplier-declared, not independent test certificates. Confirm the current revision, connector, mounting drawing and receiver compatibility before ordering. Phase center error is not a guarantee of positioning accuracy; request a calibration report or ANTEX file if your project requires one.
- BeiDou-focused does not mean BeiDou-only: the supplier table also lists GPS L1, GLONASS G1 and Galileo E1. Confirm this selected-band configuration; do not assume GPS L2/L5 or BeiDou B2 support.
- No IP rating is specified in this source. Do not assume sealed outdoor suitability; confirm the installation and environmental requirements.
Technical specifications
| Listed signal selection | BDS B1I/B1C/B3I · GPS L1 · GLONASS G1 · Galileo E1 |
|---|---|
| Operating frequency | B1I: 1561.098 ± 2.046 MHz; B1C: 1575.42 ± 2.046 MHz; B3I: 1268.52 ± 10.23 MHz; L1: 1575.42 ± 1.023 MHz; G1: 1602.5625 ± 4 MHz; E1: 1575.42 ± 12.276 MHz |
| Impedance | 50 Ω |
| Polarization | RHCP |
| Maximum antenna gain | ≥5.5 dBi |
| Axial ratio | ≤3 dB |
| Horizontal coverage | 360° |
| Phase center error (supplier specification) | ±2 mm |
| LNA gain | 40 ± 2 dB |
| Noise figure | ≤2 dB |
| In-band flatness | ±2 dB |
| Operating voltage | 3–12 V DC |
| Current draw | ≤45 mA |
| Dual-frequency delay difference | ≤5 ns |
| Output VSWR | ≤2:1 |
| Operating temperature | −40°C to +80°C |
| Storage temperature | −45°C to +85°C |
| Humidity, non-condensing | 95% RH |
| Connector | TNC-K |
| Weight | ≤320 g |
| Dimensions (supplier drawing) | Ø130 ± 1 mm × 67 ± 1 mm |
Source: supplier specification: TDXL-BA610, pages 2–3. Revision not stated in the supplied PDF.
